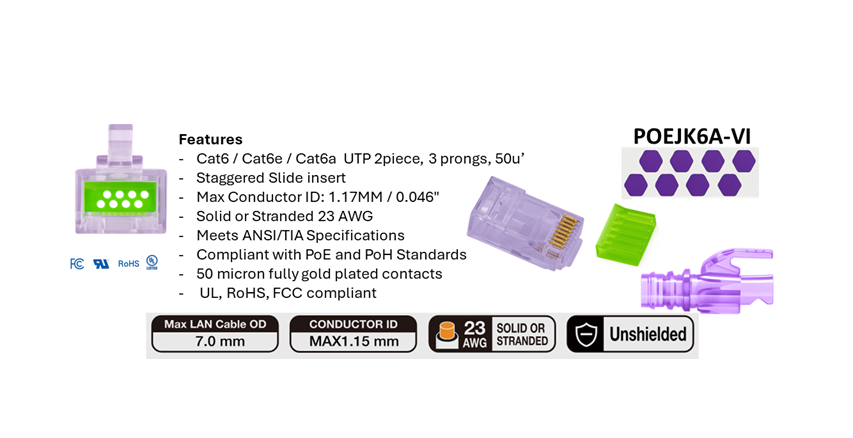

Cat6a/e RJ45 MPTL Crimp Ends - 100 Pack Jar with strain relief- Light Violet Tinge

POEJK6A-VI

Get ultimate performance for your network with this jar of 100 Cat6a/e RJ45 MPTL crimp ends, each featuring integrated strain relief and a stylish light violet tinge. Ideal for secure, high-speed connections in modern installations.

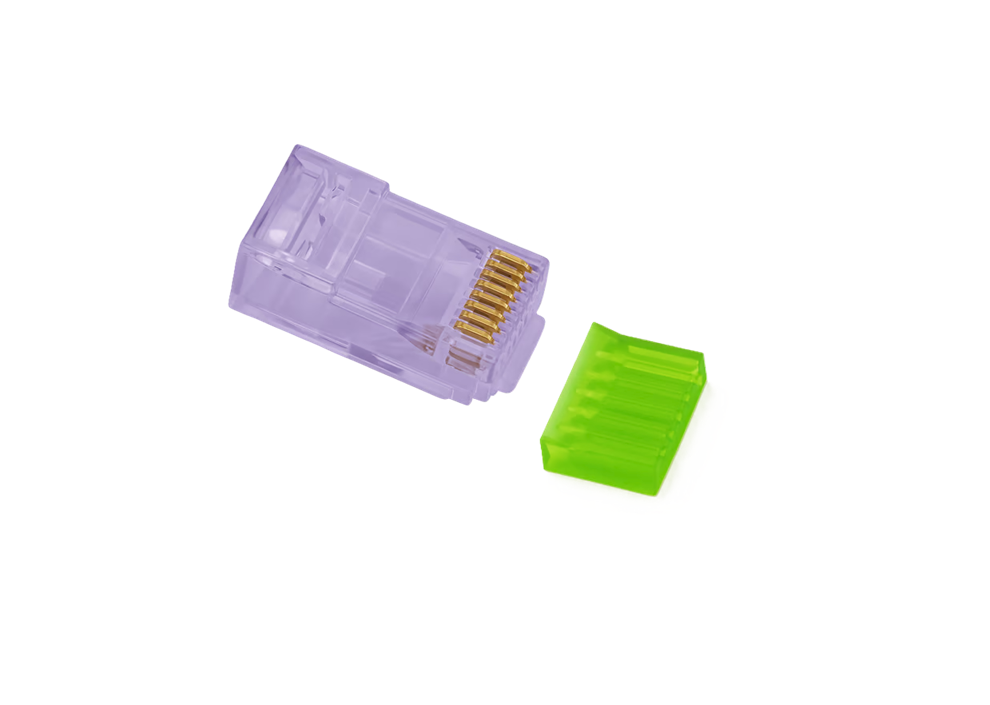

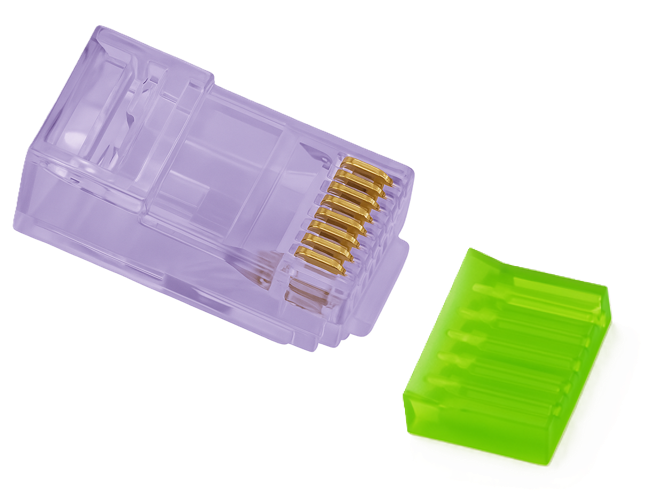

Easy to load using the staggered sled (green) that allows conductors to be passed through, cut, then inserted into RJ45 connector to be crimped.

No concerns of exposed conductors shorting like pass thru connectors.

The staggered sled makes installation easier for technicians and the staggering reduces NEXT for better performance.

The Staggered Sled Connector is made of materials that provide better signal isolation and substantially reduce the effects of cross-talk inside the RJ45 mod plug. The Staggered Sled absorbs and limits both near-end crosstalk (NEXT) and far-end cross-talk (FEXT), thereby improving cable performance.

The staggered sled innovative design reduces the length of untwisted wires inside the plug improving twisted pair signal performance and substantially reducing the introduction of NEXT into the signal. The staggered sled uses a Hi/Lo stagger design that is inserted into the plug until it sits directly on top of the plug pins. The exposed wires are then trimmed flush to the plug before inserting.  This significantly reduces the amount of untwisted wires inside the RJ45 plug.

The staggered sled combined with POE Jack® internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires. This symbiotic design of the load bar and internal RJ45 plug design helps maintain improved headroom performance and better signal integrity than any other pass-through RJ45 solution for unshielded Cat6 LAN cables.

Works in all compliant RJ45 modular plug sockets. Supports performance standards: ANSI/TIA 568.2-D and ISO/IEC 11801.

The 3 Prong Pin Design uses 3-Prong Pins versus 2-Prong Pins. POE Jack® only uses a 3-Prong Pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin holds onto the wire conductors much better and does not “pop” (2-prong pins are susceptible to “popping” over time. This can cause the pin to pop up back into the plug and no longer hold onto the plug. This can happen anytime over the history of the termination and cause numerous troubleshooting problems.) If a pin becomes loose over time it will cause resistance. Resistance creates heat. Heat can be catastrophic from causing termination failure or shorting in the RJ45 socket. Important Note: 2-Prong Pins should never be used with PoE/PoH applications. Use only 3-Prong Pin RJ45 modular plugs for any and all PoE/PoH applications.

Improved Crosstalk Performance. The unique internal design of the POEJK6A-VI Standard RJ45 modular plug allows the LAN cable to be inserted further into the RJ45 plug. This reduces the length of untwisted wires improving NEXT performance.  Our POEJK6A-VI plug design and staggered sled provide the best crosstalk performance of any unshielded RJ45 plug on the market.

Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations.  These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca-rated LAN cables.

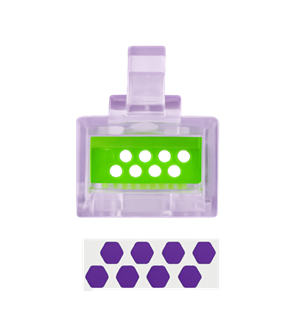

Color Tinted RJ45 Modular Plugs. The POEJK6A-VI comes with a lime green staggered sled  for easy pass-through before inserting into the RJ45 modular plug. No more trouble identifying which plug is which. All POE Jack® RJ45 modular plugs are color-coded violet for easy identification.

Strain relief boot. The POEJK6A-VI comes with strain relief boot in the jar to maintain the best quality installs and protection of the cable.

Wide Mouth Jar with handle for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them.

Violet Jar Caps. The POEJK6A-VI jar cap violet for easy identification at distribution or in your work vehicle.

UL Listed. The POEJK6A-VI RJ45 modular plugs are UL Listed

PoE/PoH Rated. The POEJK6A-VI is ideal for PoE/PoH applications. The POEJK6A-VI uses the correct 3-Prong Pin design; true 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs. This all ensures lower resistance and less heat build-up than cheaper-made RJ45 that are out on the market.

Compliant with Industry Standards. ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC

"TAA compliant"
